SPI Control Protocol

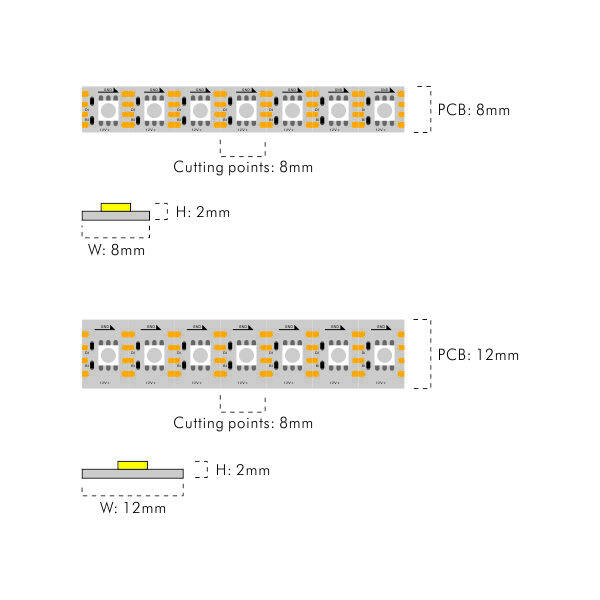

Free Cut 12V RGB led strip SPI control protocol 125LEDs/M PCB8MM,12MM
MR-CM3535120802L-SPIRGB (125LEDs)
* RGB (3 in1) Pixel strip
* Pixel editable control
* Free Cut

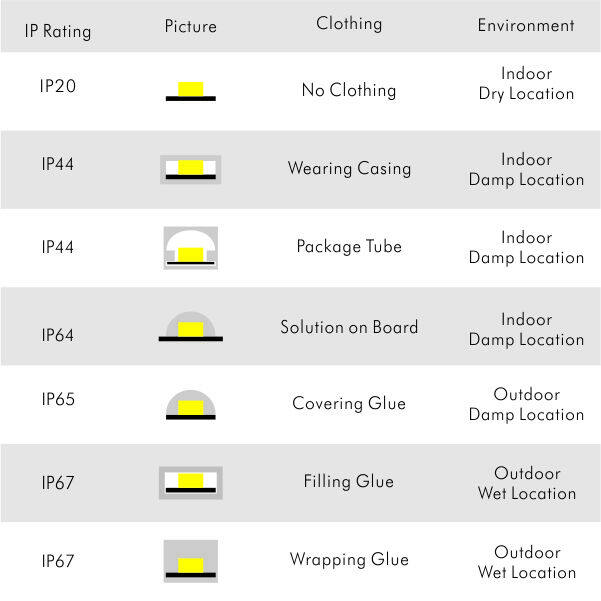

* IP Rating IP20
* Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
* Lamp Life : 50,000 Hours
Product Certification
Product Parameters
Product | Input Voltage | Power | LED Type | PCB width | LED | Cuttable Size | CCT | Lumen/M | Beam Angle | IP Rating | Length per roll |
MR-CM3535120802L-SPIRGB | 12V | 13W/M | SMD 3535 | 8mm | 125 LEDs/M | 1LEDs，8mm | Red | 30 cd/m | 120° | IP20 | 5M/Roll |
Green | 120 cd/m | ||||||||||
Blue | 18 cd/m | ||||||||||
MR-CM3535121202L-SPIRGB | 10.8W/M | 12mm | Red | 50 lm/M | |||||||
Green | 180 lm/M | ||||||||||
Blue | 50 lm/M |
