SPI Control Protocol
SPI RGB led strip 84LEDs/M 24V 16W SMD5050 SPI control protocol
MR-CM5050241202L-SPIRGB (84LEDs)
* RGB (3 in1) Pixel strip
* SPI control protocol
* Pixel editable control
* IP Rating IP20
* Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
* Lamp Life : 50,000 Hours
Product Certification
Product Parameters
Product | Input Voltage | Power | LED Type | PCB width | LED Qty | Cuttable Size | CCT | Lumen/M | Beam Angle | IP Rating | Length per roll |

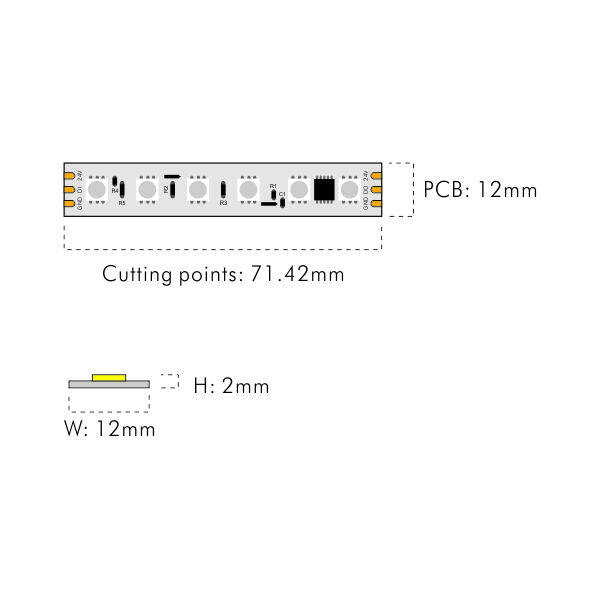

MR-CM5050241202L-SPIRGB | 24V | 16W/M | SMD 5050 | 12mm | 84 LEDs/M | 6LEDs，71.42mm | Red | 176 lm/M | 120° | IP20 | 5M/Roll |
Green | 672 lm/M | ||||||||||
Blue | 160 lm/M | ||||||||||
RGB | 450 lm/M |
