SPI Control Protocol
SPI RGB led strip Non-resumable transfer SPI control protocol 24V 20W SMD3535
MR-CM3535240802L-SPIRGB (96LEDs)
* RGB (3 in1) Pixel strip
* Pixel editable control
* Non-resumable transfe
* IP Rating IP20
* Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
* Lamp Life : 50,000 Hours
Product Certification
Product Parameters

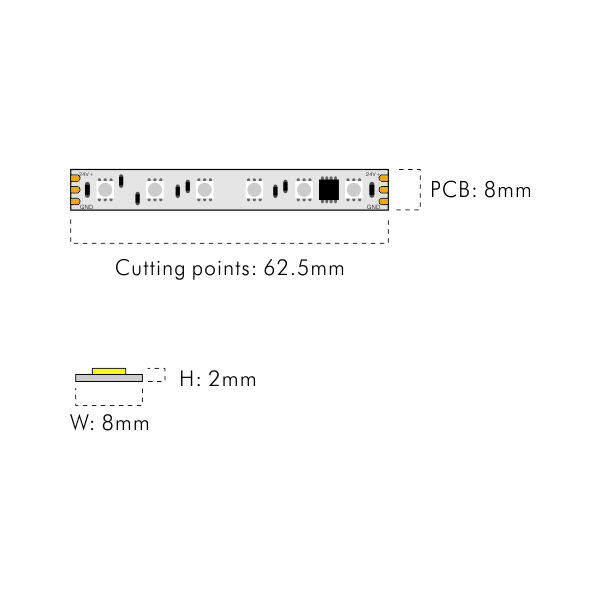

Product | Input Voltage | Power | LED Type | PCB width | LED | Cuttable Size | CCT | Luminance | Beam Angle | IP Rating | Length per roll |
MR-CM3535240802L-SPIRGB | 24V | 20W/M | SMD 3535 | 8mm | 96 LEDs/M | 6LEDs，62.5mm | Red | 30 cd/m | 120° | IP20 | 5M/Roll |
Green | 120 cd/m | ||||||||||
Blue | 18 cd/m |
