Wireless charging

 Product features
Wireless charging + thermostatic control
1. Hidden design, perfect retention of furniture style:
2. 15W EPP wireless fast charging;
3. Wireless heating function, comfortable temperature, healthy drinking water (add drinks to the thermostatic cup, and place the cup in the middle area of the wireless charge to start heating, when heated to 50℃,it automatically carry out the thermostat mode. When the thermostat time exceeds 2 hours, if the cup has not been moved, it will automatically stop the constant temperature and add heat function);
4. Embedded installation design, anti-fall pull card slot, easy to install and fix;
5. Hard acrylic plexiglass panel, anti-scratch, high temperature resistance, flame retardant;
6. Built-in high conductivity alumina chisel tooth radiator, the bottom of the shell adopts bee hole heat dissipation design, extremely fast cooling, improve charging efficiency;
7.Ring indicator + prompt sound, accurately marking the charging area and heating function;
8. Classic black/white/gray optional;

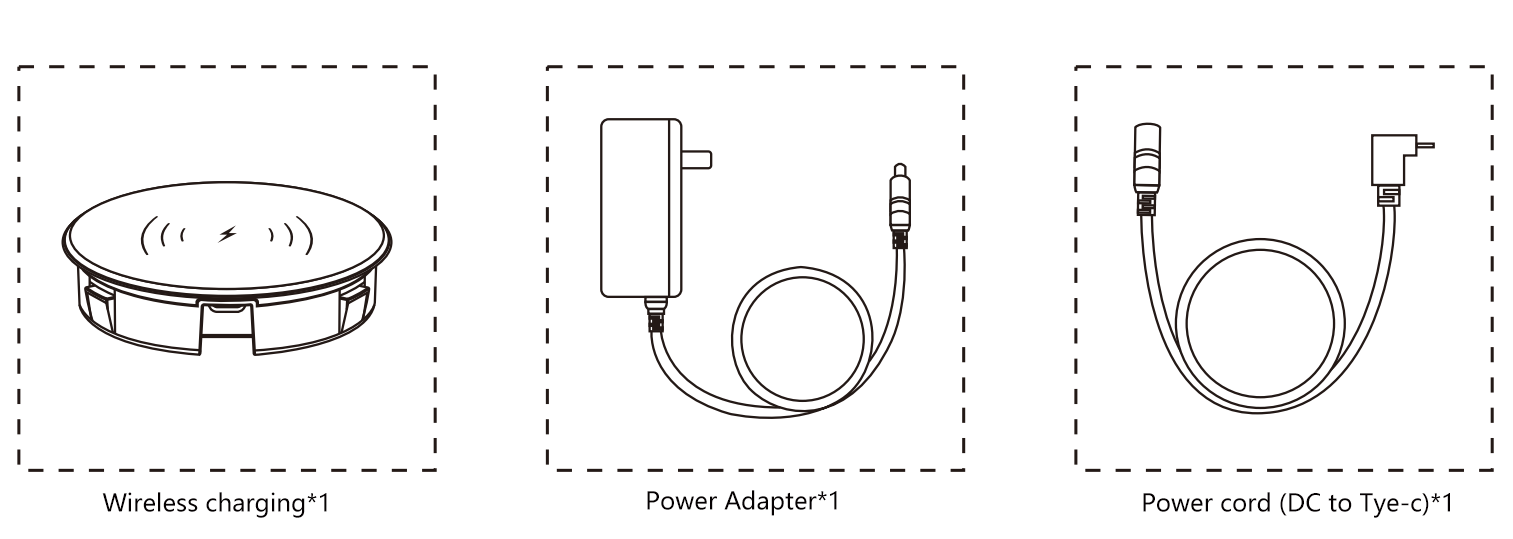

 Standard accessories





 Parameter



Power Supply Input AC 220-240V 50/60Hz 0.5A Max
Output DC 12V/2A 24W
Wireless Charging Output Power 15W Max
Constant temperature power 15W Max
Product Size φ95mm*H25mm

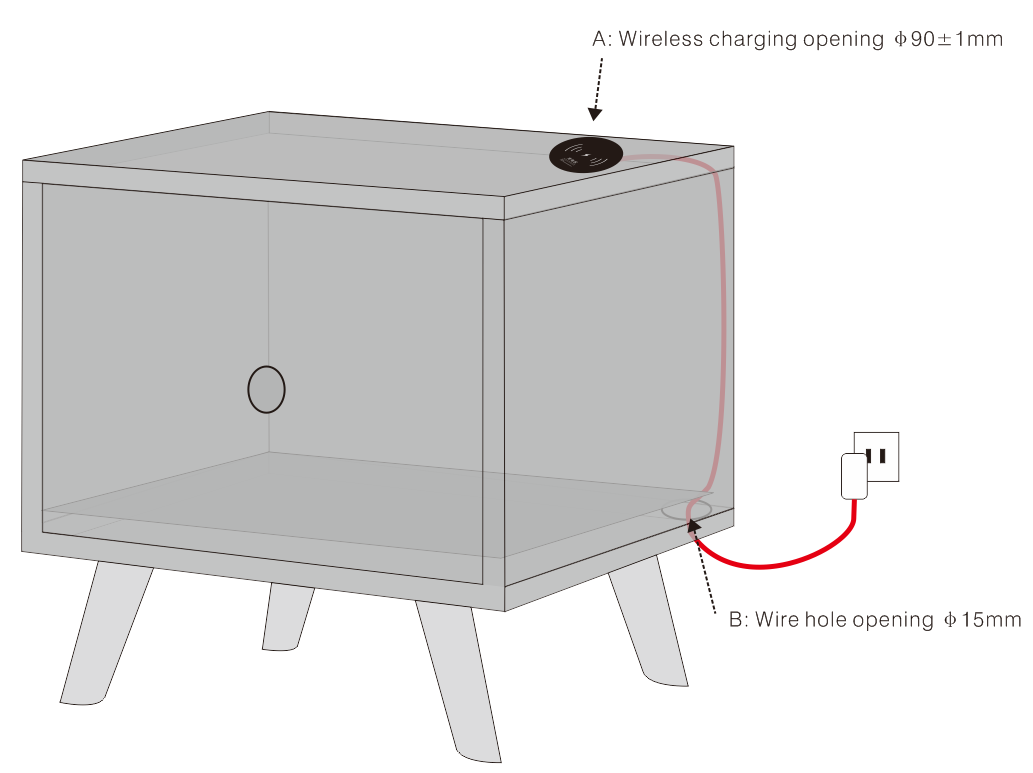

 Install

Precautions

Please read and follow the following precautions carefully before installing and using this product:

1. Warning: Do not place metal products on the wireless charging product, so as not to cause false heating; when metal foreign objects are placed on the when charging wirelessly, the indicator light will flash red, and the buzzer will also sound an alarm.

2. Warning: Do not place magnetic cards such as bank cards, bus cards, and identity cards on the product to avoid damage to the cards.

3. If you change the adapter by yourself, please use a 12V adapter, otherwise it cannot work normally.

4. Use the wireless charging function of this product,Do not use mobile phones with a thickness greater than 3mm thick phone case.

5. The thermostatic control of this product needs to cooperate with use with wireless heating cups, ordinary cups the thermostatic control cannot be realized.

6. The special constant temperature cup contains metal, please do not heat it in the microwave.





Working status Metal foreign body Normal charging Phone full Mug heating Normal standby Abnormal standby
Tips or warnings Red light flashes,  buzzer alarm Green Breath (place The phone starts charging Sometimes, there will be a "beep" one beep) Green steady(Samsung only cell phone) Red Light Breathing (Placing the cup is heating up Sometimes, there will be a "beep"one beep) Green light Alternate red and green
