2835 Series Light Strip (PCB 10MM)
PRODUCT FEATURES
LED technology with strong self-adhesive sticker for secure and easy application
Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
Lamp Life : 50,000 Hours
Safety, low voltage pressure, excellent stability, good flexibility and free bending
High brightness, uniform light emission without spot
Category：
| Parameter | |||||||||
| Product model | Input Voltage | LED Type | LED Qty | PCB width | CCT | CRI | Beam Angle | IP Rating | Length per roll |
| MR-CM2835121002L | 12V | SMD 2835 |
120LEDs/M |
10MM |  |
Ra＞90 | 120° | IP20/IP44/IP65/IP68 | 5M/Roll |
| MR-CM2835241002L | 24V | ||||||||
| CCT | LED Qty | Power | Cuttable Size | Lumen/M | Lumen/W |
 |
120LEDs/M | 5W/M | 12V: 3LED，25MM 24V: 6LED，50MM |
450LM/W | 90LM/W |
| 180LEDs/M | 9W/M | 12V: 3LED，16.66MM 24V: 6LED，33.33MM |
810LM/W | ||
| 240LEDs/M | 12W/M | 12V: 3LED，12.5MM 24V: 6LED，25MM |
1080LM/W |

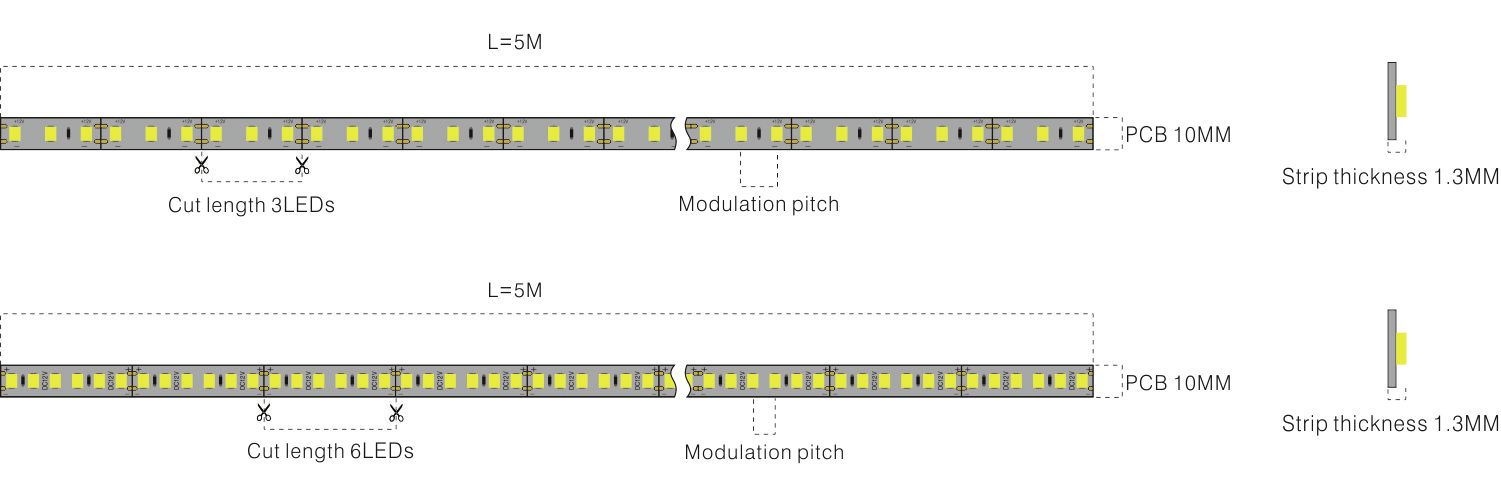

SIZE
