Embedded mini Wired sensor Door Sensor Hand Sensor Double Door Sensor slotted 8mm
Mini style, slotted 8mm

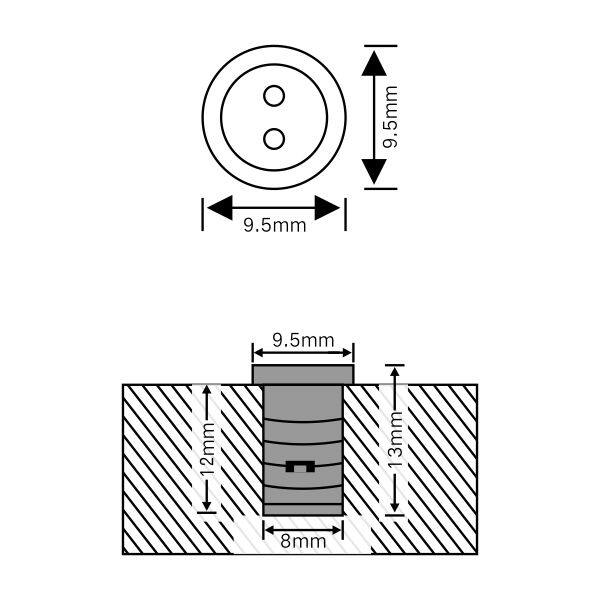

* Recessed mounting, cutout required in advance
* Three models：Hand Sensor, Door Sensor, Double Door Sensor
* Appearance color: Silver, Black
* It uses 12V or 24V low-voltage power supply
* Highly sensitive, easy to install,minimally affected by ambienttemperature.
Product Certification
Product Parameters
Product | Product Model | Input Voltage | Power | Product Size | Slotted Size | Sensing Distance | Housing Color | Termina | Working method | Warranty |
Door Sensor | MST-LP-2021M | 6V | 30W | φ9.5mm*H13mm | φ8mm*H12mm | 0-80mm | Silver, Black | Dupont wire | Light on with door open, light off with door closed | 3 years |
12V | 60W | |||||||||
24V | 100W | |||||||||
Hand Sensor | MST-LP-2021S | 6V | 30W | Wave your hand to turn the light on, and wave again to turn it off | ||||||
12V | 60W | |||||||||
24V | 100W | |||||||||
Double Door Sensor | MST-LP-2027M2 | 6V | 30W | Open one of the doors,itautomatically turning lights on and turns thelights off after closing the two doors | ||||||
12V | 60W | |||||||||
24V | 100W |
