Detachable Mini Wired sensor Smart Sensor Switch
Detachabl, slotted 10mm

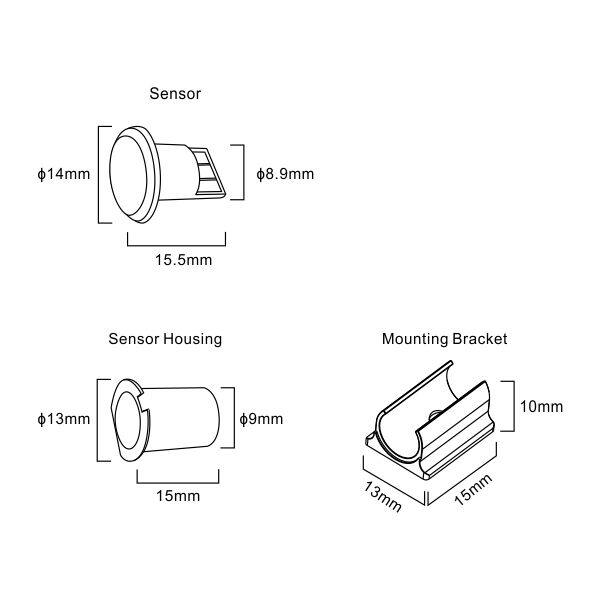

* Recessed Mounting，Bracket Mounting
* It uses 12V or 24V low-voltage power supply
* Mini style, slotted size φ10mm
* The sensor head can be freely replaced (except for dual-door control models)
* Highly sensitive, easy to install,minimally affected by ambienttemperature
Product Certification
Product Parameters
Product | Product Model | Input Voltage | Power line | Concealed hole size | Sensing Distance | Working method | Warranty |
Door Sensor | MR-2026DS | 12V | 2M | φ9mm*14mm | 0-80mm | Light on with door open, light off with door closed | 3 years |
24V | |||||||
Double Door Sensor | MR-2026DDS | 12V | Open one of the doors,itautomatically turning lights on and turns thelights off after closing the two doors | ||||
24V | |||||||
Hand Sensor | MR-2026HS | 12V | Wave your hand to turn the light on, and wave again to turn it off | ||||
24V | |||||||
Pir(body) Sensor | MR-2026PIR | 12V | 0-3M | When people come, the light will turn on; when people leave, the light will turn off | |||
24V | |||||||
Touch Sensor | MR-2026TS | 12V | Touch | Touch dimming, short touch light on/off,long touch cycle stepless dimming | |||
24V |
