Ceiling Light

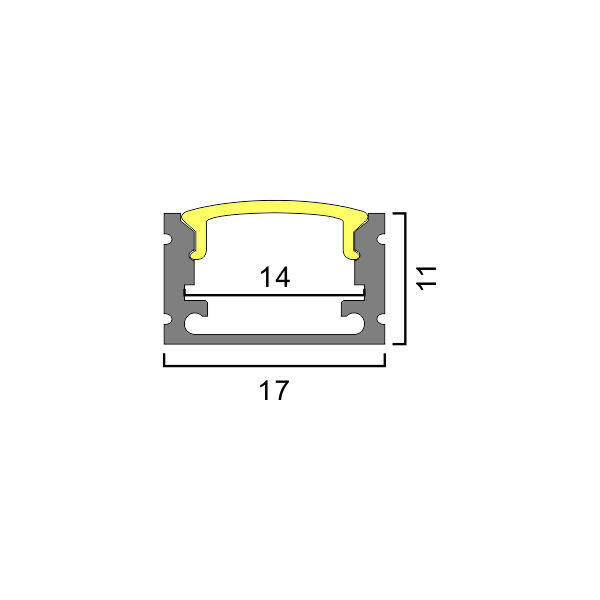

17mm luminous surface Recessed ceiling light with adjustable beam‑angle bracket and PC cover
1711X

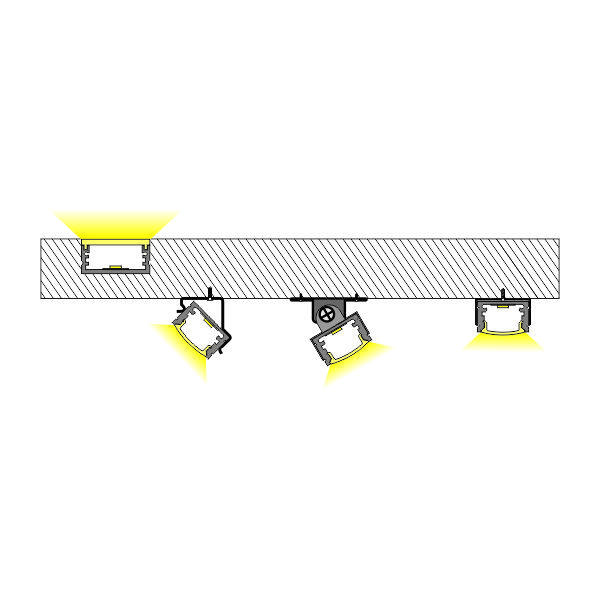

* Surface mount or recessed mounting
* Can be matched with fixed‑angle brackets or adjustable‑angle brackets.
* Can be installed on ceilings, floors, walls, and other places
* Thickened aluminum profiles for better heat dissipation
* PC lampshade for more uniform illumination
Product Certification
Product Parameters
Product model | Input Voltage | Power | LED Type | LED Qty | Cuttable Size | CCT | Lumen/M | CRI | Beam Angle | IP Rating | Max Length |
MR-AL2835121711X | 12V | 4.8W/M | SMD 2835 | 120LEDs/M | 3LED, 25mm | 3000K | 240 lm/m | Ra＞90 | 120° | IP20 | 3M/PCS |
4000K | |||||||||||
6000K | |||||||||||
CCT | |||||||||||
MR-AL2835241711X | 24V | 6W/M | 6LED, 50mm | 3000K | 300 lm/m | ||||||
4000K | |||||||||||
6000K | |||||||||||
CCT |
