SOB Strip

SOB Free Cut LED Strip PCB4mm 320LEDs/M with supporting substrate

MR-CM2025240403S Free Cut (320LEDs/M）

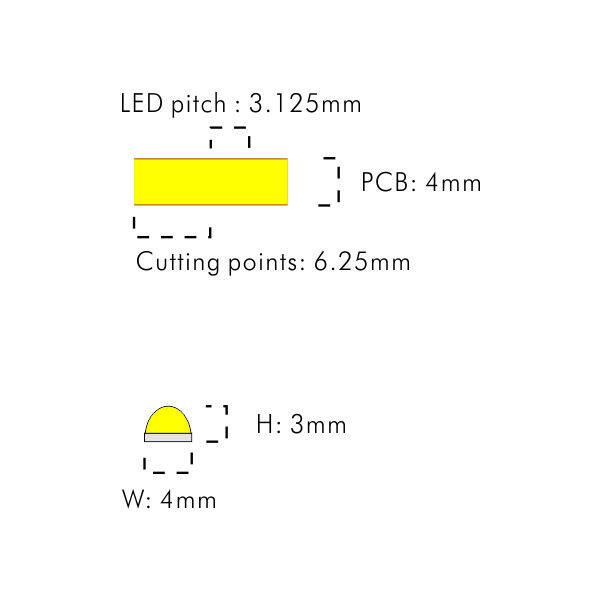

* Free cut , Minimum cutting unit 2 LEDs 6.25 mm

* High-density LED array

* Within 3-step SDCM

* SMD LED with supporting substrate

* IP Rating IP20

* 3-year warranty

Product Certification

Product Model

Input Voltage

Power

LED Type

PCB Width

LED Qty

Cuttable Size

CCT

Lumen/M

CRI

Beam Angle

IP Rating

Length per roll

MR-CM2025240403S

24V

6W/M

SMD 2025

4mm

320LEDs/M

2LED,
6.25mm

3000K

350lm/m

Ra＞90

120°

IP20

10M/Roll

4000K

370 lm/m

6000K

390 lm/m
