Handle-free Drawer Light Strip Bar

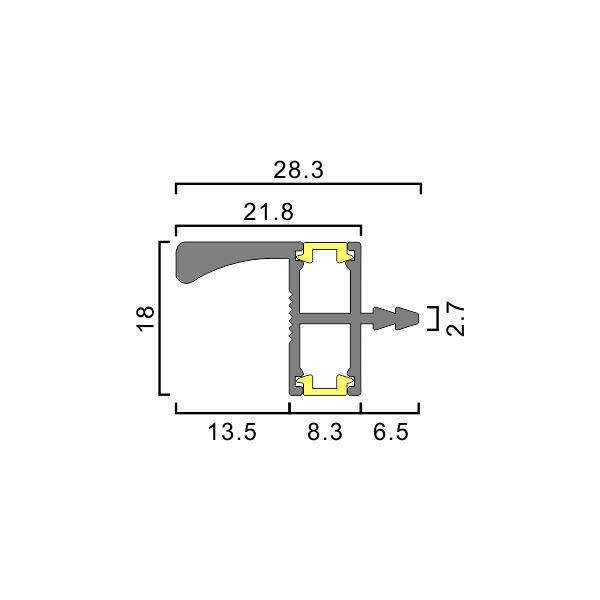

Upper Cabinet Handle-free Drawer Light Strip Bar Double‑sided Light Emission
2818A(X)
* Double-sided lighting

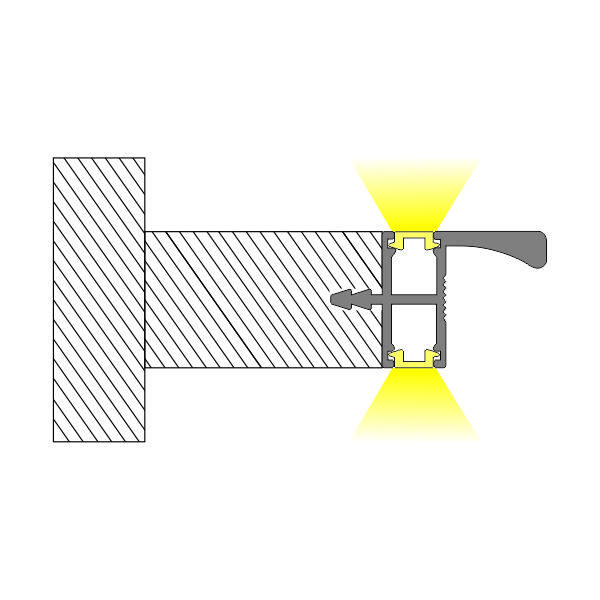

* Need to cut grooves in advance for plug-in installation
* PC lampshade for more uniform illumination
* Thickened aluminum profiles for better heat dissipation
* Protection level IP20, for indoor use
* Housing color: Iron Gray,Silver,Black,Bronze Gold
Product Certification
Product Parameters
Product model | Input Voltage | Power | LED Type | LED Qty | Cuttable Size | CCT | Lumen/M | CRI | Beam Angle | IP Rating | Max Length |
MR-AL2835122818(A)X | 12V | 4.8W/M | SMD 2835 | 120LEDs/M | 3LED, 25mm | 3000K | 240 lm/m | Ra＞90 | 45° | IP20 | 3M/PCS |
4000K | |||||||||||
6000K | |||||||||||
CCT | |||||||||||
MR-AL2835242818(A)X | 24V | 6W/M | 6LED, 50mm | 3000K | 300 lm/m | ||||||
4000K | |||||||||||
6000K | |||||||||||
CCT |
