Wireless Sensor
* High sensitivity, little affected by ambient temperature.
* High stability, long transmission range, high load capacity.
* Compact, wiring-free, wall-penetrating, easy maintenance & after-sales service.
* Compatible with various constant-voltage LED lights.
* Ideal for cabinet, wardrobe, wine cabinet and other cabinet lighting control.
Product Certification

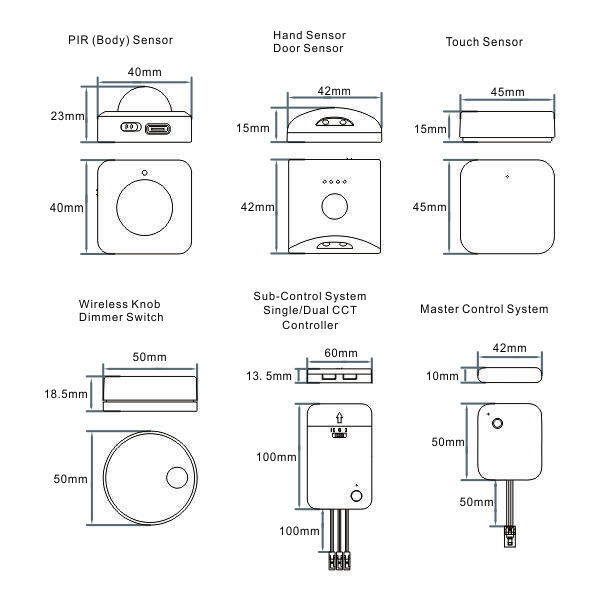

Product Parameters
Product Name | Product Model | Control mode | Battery information | Size | Connection method | Usage environment | Sensing distance | Working method |
Wireless IR Door Switch | MR-3010-MT | 2.4GHz wireless | 400mAh 3.7V type C | 42*42*15mm | Connect via receiver | Only use indoors | 0-8cm | The door opening light is on, the door closing light is off |
Wireless PIR Sensor Switch | MR-3010-PIR | 2.4GHz wireless | 400mAh 3.7V type C | 40*40*23mm | Connect via receiver | Only use indoors | 0-3M | Light turns on when people approach, and turns off with a 30-second delay after people leave. |
Wireless handwave switch | MR-3010-MT | 2.4GHz wireless | 400mAh 3.7V type C | 42*42*15mm | Connect via receiver | Only use indoors | 0-8cm | Wave your hand to turn the light on; wave again to turn it off. |
Wireless Touch Sensor | MR-3010-K | 2.4GHz wireless | 400mAh 3.7V type C | 45*45*15mm | Connect via receiver | Only use indoors | Touch | Touch dimming, short touch light on/off, long touch cycle stepless dimming |
Wireless Knob Dimmer Switch | MR-3010-XN | 2.4GHz wireless | 400mAh 3.7V type C | φ50* H18.5mm | Connect via receiver | Only use indoors | Click/Long press/Rotate | Single click to turn ON/OFF. Rotate clockwise to increase brightness; rotate counterclockwise to decrease brightness. |
Product Name | Product Model | Control mode | Input/Output Voltage | Size | Load LED power | Receiving distance | Power cord length | |
Master Control System | MR-3020-BJ | Master Control | DC 12V/ 24V | 50*42*10mm | / | 10M | 50mm | |
Sub-Control System（Single/Dual CCT Controller） | MR-3022 | Sub-Control | DC 12V/ 24V | 100*60*13.5mm | Dual 180W Single 90W | 10M | 100mm |
