COB Strip

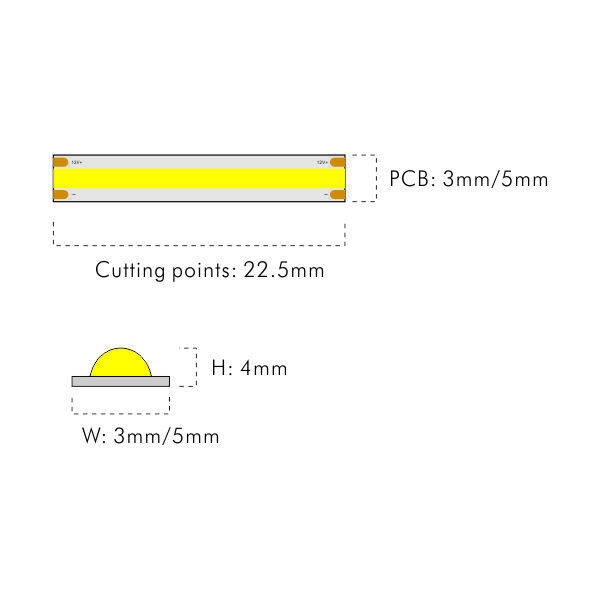

12V 5W COB Strip PCB3mm5mm 504LEDs white led strip 3000K 4000K 6000K
MR-CM0000120504C-White（504LEDs/M）
* High-density COB chips, soft light and brighter light
* The LED chip is directly mounted on the FPC
* The high thermal conductivity flexible PCB design enables free bending and easy installation
* IP Rating lP20
* 3-year warranty
Product Certification
Product Parameters
Product Model | Input Voltage | Power | LED Type | PCB Width | LED Qty | Cuttable Size | CCT | Lumen/M | CRI | Beam Angle | IP Rating | Length per roll |
MR-CM0000120304C-White | 12V | 5W/M | COB | 3mm | 504 LEDs/M | 22.5mm | 3000K | 920 lm/M | Ra＞90 | 120° | IP20 | 5M/Roll |
4000K | 980 lm/M | |||||||||||
6000K | 1000 lm/M | |||||||||||
MR-CM0000120504C-White | 5mm | 3000K | 920 lm/M | |||||||||
4000K | 980 lm/M | |||||||||||
6000K | 1000 lm/M |
