SPIRGB COB Strip SPI 5V 13W RGB led strip 5mm 160leds red green blue
MR-CM0807050502C-SPIRGB
The biggest feature of COB LED strips is 'light, but no visible light source' — they emit a continuous, uniform light strip without the annoying 'graininess' or 'speckles' found in traditional LED strips. This is mainly due to their unique COB (Chip-on-Board) packaging technology: a large number of LED chips are densely arranged and directly encapsulated on a flexible circuit board, forming a continuous linear light source.
* COB Strip, Luminous angle 180 °
* DC5V constant voltage design
* SPI Control Protocol
* Built-in IC, IC Model MW1838
* IP Rating lP20
* Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
* Lamp Life : 50,000 Hours
* COB Strip, Luminous angle 180 °
* DC5V constant voltage design
* SPI Control Protocol
* Built-in IC, IC Model MW1838
* IP Rating lP20
* Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
* Lamp Life : 50,000 Hours
Quantity
Product Certification
Product Parameters
| Product model | Input Voltage | Power | LED Type | PCB width | LED Qty | Cuttable Size | CCT | Dominant Wavelength | Beam Angle | IP Rating | Length per roll |
| MR-CM0807050502C-SPIRGB | 5V | 13W/M | COB | 5mm | 160LEDs/M | 12.5mm | Red | 622 nm（±5 nm） | 180° | IP20 | 5M/Roll |
| Green | 525 nm（±5 nm） | ||||||||||
| Blue | 468 nm（±5 nm） |
ProductApplication

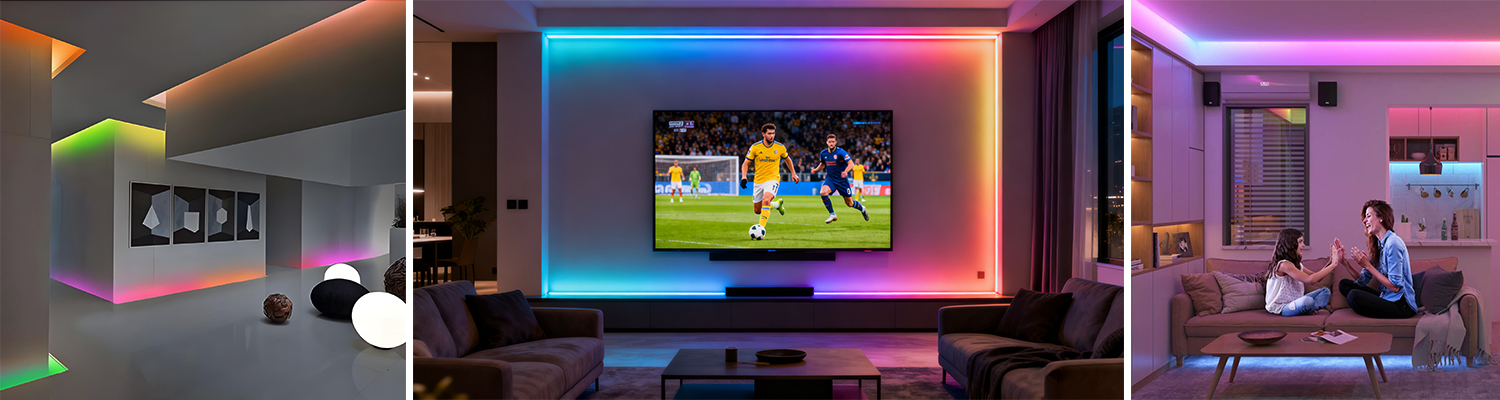

Due to their uniform light emission, no visible light spots, high color rendering index, and flexible bendability, COB LED strips have a very wide range of applications, mainly covering areas such as residential, commercial, automotive, and creative display.
