Side emitting LED strips SMD3015 24V 9.6W 140LEDs/M 1000lm/m
MR-CM3014240802L-NW
Side-emitting LED strip is a type of LED strip packaging. Unlike common "direct-emitting" strips (where the LEDs face upward), the LEDs on a side-emitting strip are mounted on the side, and the light is emitted from the side through a light-guiding structure.Its biggest advantages are:No visible light spots (no dotting)，No glare,Soft light output,Strong linear lighting effect,Because the LEDs are on the side, the strip itself can be made quite thin (typically 3–5 mm). When installed with an aluminum channel, it requires less mounting depth than a direct-emitting strip.
* Flex PCB
* Side emitting LED strips
* 3M Adhesive
* IP Rating IP20
* Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
* Lamp Life : 50,000 Hours
* Flex PCB
* Side emitting LED strips
* 3M Adhesive
* IP Rating IP20
* Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
* Lamp Life : 50,000 Hours
Quantity
Product Certification
Product Parameters
ProductApplication
Product Parameters
| Product model | Input Voltage | Power | LED Type | PCB width | LED Qty | Cuttable Size | CCT | Lumen/M | CRI | Beam Angle | IP Rating | Length per roll |
| MR-CM3014240802L-NW | 24V | 9.6W/M | SMD 3014 | 8mm | 140LEDs/M | 7LEDs, 50mm | 4000K | 1000 lm/m | Ra＞95 | 120 ° | IP20 | 5M/Roll |
ProductApplication

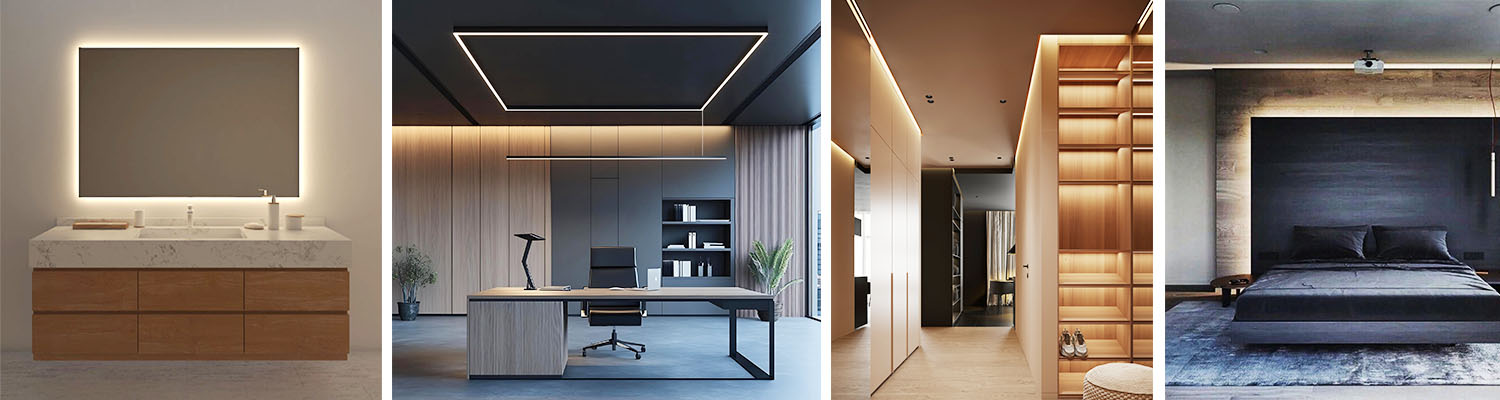

Side-emitting LED strips are ideal for indirect lighting, contour outlining, and atmosphere creation due to their features of no visible light spots, no glare, and uniform light output. They are non-dazzling and can create clean, crisp linear light bands, making them widely used in modern interior design.
