Handle-free Drawer Light Strip Bar
MR-AL2835123820X
The handleless cabinet light replaces traditional door handles through an intelligent combination of lighting and structure. Concealed within the cabinet, it automatically illuminates when the door opens, creating a clean, seamless look. This design eliminates handle-related bumps and dust buildup while providing soft, even lighting across countertops, drawers, and cabinet interiors — significantly enhancing both the functionality and elegance of your kitchen.
* Installed on the front of the shelf/panel,advance reservation of the cabinet light dimensions is required
* Suitable for 18mm thick panels
* PC lampshade for more uniform illumination
* Thickened aluminum profiles for better heat dissipation
* Housing color: Silver, Black, Brass Gold
* Installed on the front of the shelf/panel,advance reservation of the cabinet light dimensions is required
* Suitable for 18mm thick panels
* PC lampshade for more uniform illumination
* Thickened aluminum profiles for better heat dissipation
* Housing color: Silver, Black, Brass Gold
Quantity
Product Certification
Product Parameters
| Product model | Input Voltage | Power | LED Type | LED Qty | Cuttable Size | CCT | Lumen/M | CRI | Beam Angle | IP Rating | Max Length |
| MR-AL2835123820X | 12V | 4.8W/M | SMD 2835 | 120LEDs/M | 3LED, 25mm | 3000K | ≥240 lm/m | Ra＞90 | 120° | IP20 | 3M |
| 4000K | |||||||||||
| 6000K | |||||||||||
| CCT | |||||||||||
| MR-AL2835243820X | 24V | 6W/M | 6LED, 50mm | 3000K | ≥300 lm/m | ||||||
| 4000K | |||||||||||
| 6000K | |||||||||||
| CCT |

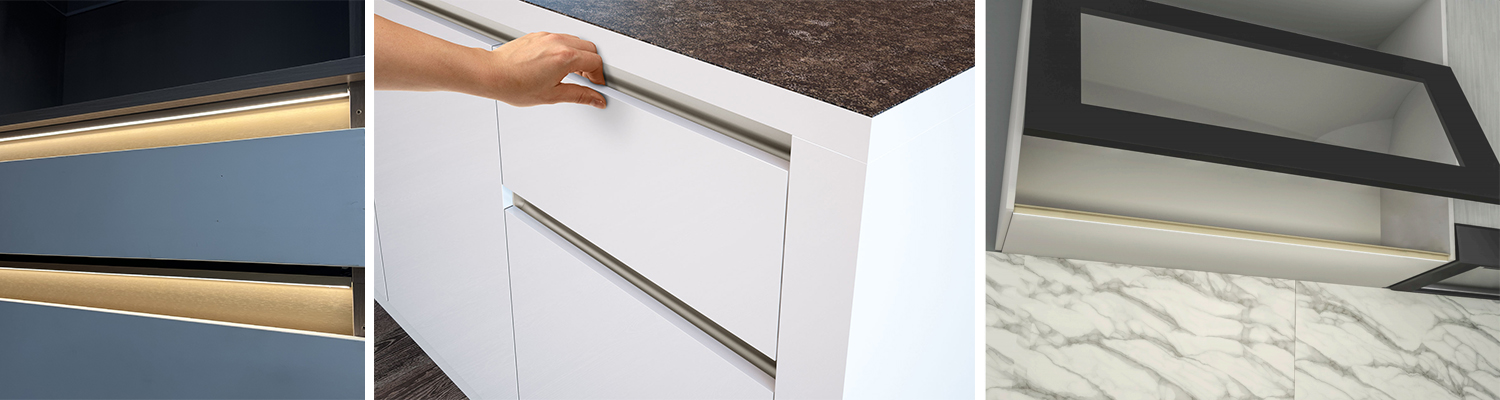

ProductApplication
Handleless cabinet lights have a very wide range of applications. Their core lies in combining"handle function,""illumination,"and"minimalist aesthetics"into one. They are widely used on wall cabinets, base cabinets, drawers, and more.
