Smart wireless sensor Door Sensor Hand Sensor Touch Sensor PIR(Body) Sensor
MR-3010
The core features of wireless sensors include cable-free installation for flexible placement, intelligent detection of human motion or presence via PIR or microwave radar, and ambient light sensing for automatic "on/off" control. This eliminates the need to search for switches in the dark and prevents energy waste from lights being left on. With ultra-low power consumption enabling years of battery life, along with adjustable delay-off and sensing distance settings, these sensors are adaptable to a wide range of scenarios
* No wiring needed, no drilling required, easier installation
* Powered by button cell battery
* It uses 12V or 24V low-voltage power supply
* Highly sensitive, easy to install,minimally affected by ambienttemperature.
* No wiring needed, no drilling required, easier installation
* Powered by button cell battery
* It uses 12V or 24V low-voltage power supply
* Highly sensitive, easy to install,minimally affected by ambienttemperature.
Quantity
Product Certification
Product Parameters
ProductApplication
Product Parameters
| Product Name | Product model | Control mode | Battery information | Product size | Connection method | Usage environment | Sensing distance | Working method |
| Door Sensor | MR-3010MT | 2.4G wireless | 400mAh 3.7V type C | L42 * W42 * H15mm | Connect via receiver | Only use indoors | 0-80mm | Light on with door open, light off with door closed |
| Hand Sensor | Wave your hand to turn the light on, and wave again to turn it off | |||||||
| Touch Sensor | MR-3010K | L45 * W45 * H15mm | Click/Long press | Waving the light on, then waving the light off again | ||||
| PIR(Body) Sensor | MR-3010P IR | L40 * W40 * H23mm | 0-3M | When people come, the light will turn on;when people leave, the light will turn off | ||||
| Product Name | Product model | Input/output voltage | Product size | Receiving distance | Load LED power | Power line | / | / |
| Sub control system | MR-3020 | DC 12-24V | L100* W60 * H13.5mm | 10M | dual 180W (single 90W) | 100mm | / | / |
| Master Control System | MR-3020JB | DC 12-24V | L50 * W42 * H10mm | 10M | / | 50mm | / | / |
ProductApplication

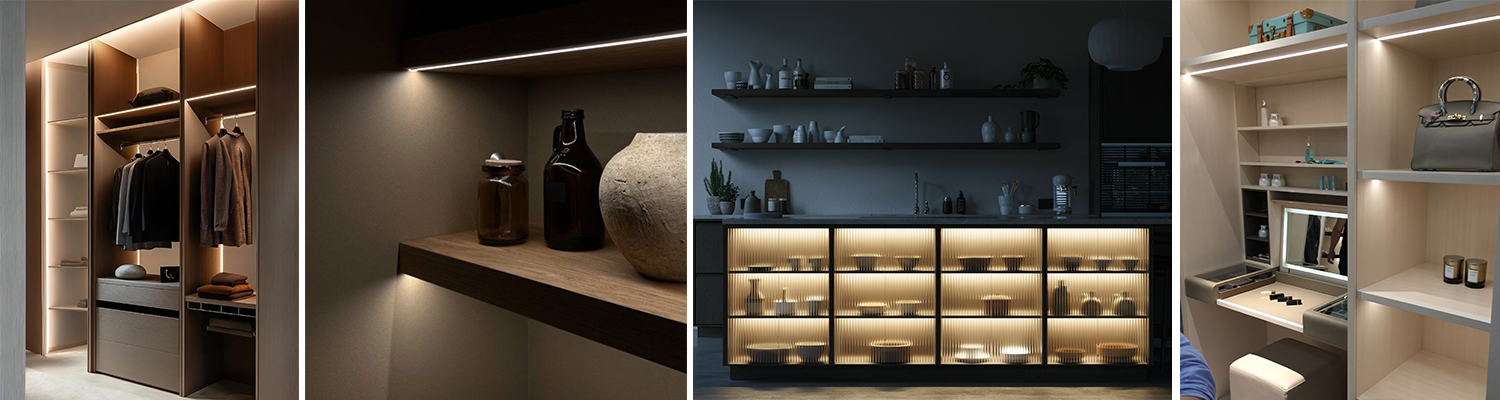

The core of wireless sensors lies in their ability to leverage the features of no wiring and flexible deployment to achieve intelligent sensing and automated control across multiple scenarios. They are widely used in smart homes, such as in wardrobes, cabinets, bedside areas, studies, hallways, and entryways.
