Embedded In-ground Light IP65 PC cover No burrs
MR- AL2835241909X
The most distinctive feature of LED linear inground lights is their ability to create a continuous, straight strip of light at ground level, achieving a "see the light, not the fixture" visual guidance effect. Unlike point-source inground lights, they typically use anodized aluminum housings with PC diffusers, producing a softer and more uniform light without obvious spotting. Their construction also emphasizes high load-bearing capacity and an IP65 protection rating, allowing them to be embedded in plazas, walkways, docks, or building perimeters for outline highlighting, motion guidance, or boundary marking. During installation, they must be paired with embedded profiles to keep the light surface flush with the ground, enabling them to withstand pedestrian or vehicle traffic while creating a subtle and orderly lighting environment at ground level.
* IP65 waterproof design for a wide range of indoor and outdoor flooring applications
* PC lampshade for more uniform illumination
* It can be installed on the ground either indoors or outdoors
* Thickened aluminum profiles for better heat dissipation
* Housing color: Silver
* IP65 waterproof design for a wide range of indoor and outdoor flooring applications
* PC lampshade for more uniform illumination
* It can be installed on the ground either indoors or outdoors
* Thickened aluminum profiles for better heat dissipation
* Housing color: Silver
Quantity
Product Certification

Product Parameters
| Product model | Input Voltage | Power | LED Type | LED Qty | Cuttable Size | CCT | Lumen/M | CRI | Beam Angle | IP Rating | Max Length |
| MR-AL2835121909X | 12V | 4.8W/M | SMD 2835 | 120LEDs/M | 3LED, 25mm | 3000K | ≥240 lm/m | Ra>90 | 120° | IP20 | 3M |
| 4000K | |||||||||||
| 6000K | |||||||||||
| CCT | |||||||||||
| MR-AL2835241909X | 24V | 6W/M | 6LED, 50mm | 3000K | ≥300 lm/m | ||||||
| 4000K | |||||||||||
| 6000K | |||||||||||
| CCT |

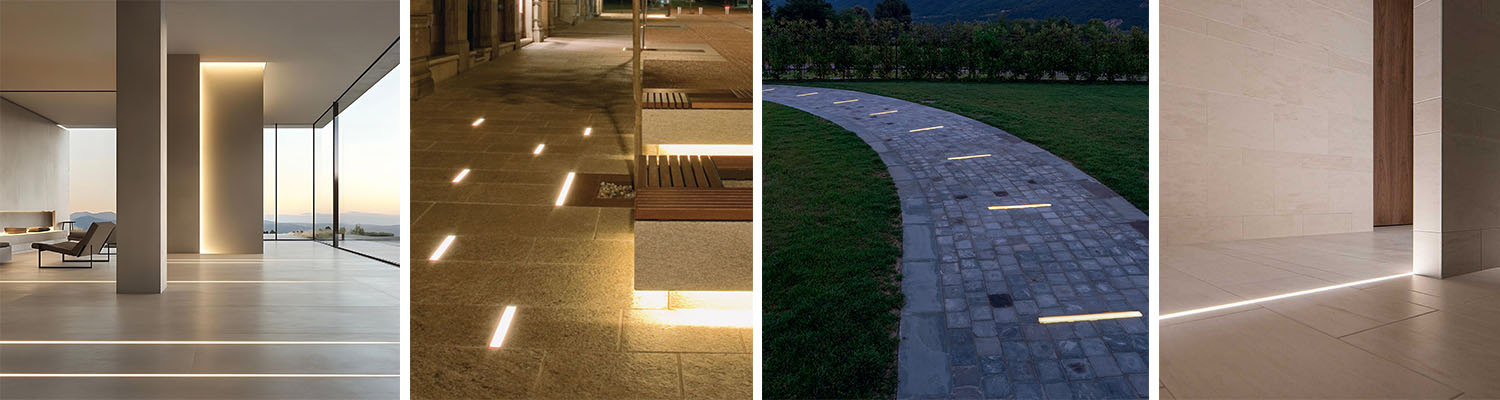

ProductApplication
Leveraging its features of"concealed installation, continuous light strip, and high load-bearing capacity,"the LED linear inground light has a wide range of applications and can be installed on both indoor and outdoor ground surfaces.
