Glass shelf light Sandwiched with 8mm thick glass

MR-AL2835240826X

Led linear lights ingeniously integrate lightingwith furniture, decorative items, and architecturalspaces. The overall lighting design can fullyunleash the pure beauty of light. People canhardly perceive the presence of light, which bringthem the most comfortable experience.
* Installation of light strips behind the layer board, the size of the strip needs to be reserved in advance
* Commonly suitable for 8mm thickness glass laminate
* PC lampshade for more uniform illumination
* Thickened aluminum profiles for better heat dissipation
* Housing color: Iron Gray, Silver, Black, Bronze Gold

Quantity

Contact Now

Product Certification

Product Parameters

Product model	Input Voltage	Power	LED Type	LED Qty	Cuttable Size	CCT	Lumen/M	CRI	Beam Angle	IP Rating	Max Length
MR-AL2835120826X	12V	4.8W/M	SMD 2835	120LEDs/M	3LED, 25mm	3000K	≥240 lm/m	Ra＞90	180°	IP20	3M
						4000K
						6000K
						CCT
MR-AL2835240826X	24V	6W/M			6LED, 50mm	3000K	≥300 lm/m
						4000K
						6000K
						CCT

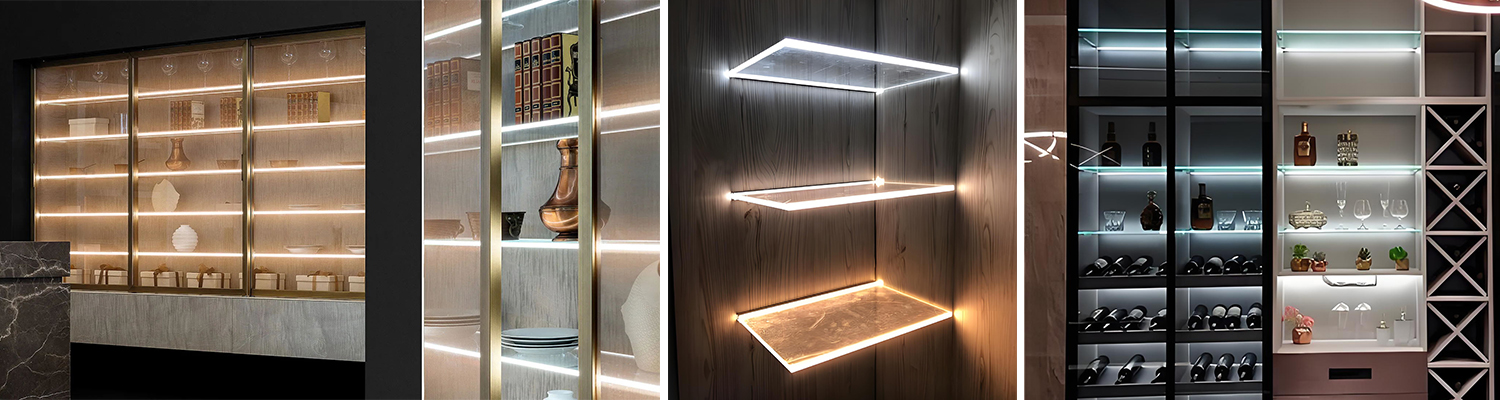

ProductApplication

LED aluminum profiles can effectively hide the messy wiring of LED light strips. Whether embedded into walls or ceilings, or surface-mounted on cabinets or display cases, they make the final lighting effect look very neat and textured. The designs and specifications of aluminum profiles are also very diverse, available in various shapes such as square, round, and 45-degree angle. They can be used with a variety of accessories such as mounting clips and hanging wires to achieve surface mounting, recessed mounting, or suspended mounting, flexibly meeting various needs.
